R2712G

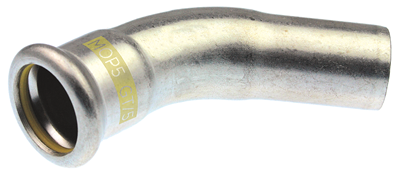

Bei VSH XPress R2712G handelt es sich um einen 45º Bogen aus Edelstahl mit einer Pressmuffe und einem Rohrende, anwendbar für Gas. Ideal für Anwendungen, bei denen hohe Schwefelwasserstoffgehalte Kupfer zu einer ungeeigneten Materialwahl machen. Der gelbe O-Ring und die gut sichtbare Markierung auf der Außenseite des Fittings gewährleisten eine eindeutige Identifizierung des Systems.
Anwendungen
Einsatzbereich
Zertifikate
Artikelnummer | Abmessung | Gewicht | L x B x H | Verpackung | GTIN |
---|---|---|---|---|---|
6210479 | 15xØ15 | 0,05 kg | 76x23x51 mm | Beutel (10 stk) | 08711985210286 |
6210481 | 18xØ18 | 0,06 kg | 76x27x51 mm | Beutel (10 stk) | 08711985210712 |
6210490 | 22xØ22 | 0,09 kg | 89x32x61 mm | Beutel (10 stk) | 08711985224757 |
6210501 | 28xØ28 | 0,12 kg | 103x38x71 mm | Beutel (5 stk) | 08711985210279 |
6210512 | 35xØ35 | 0,16 kg | 118x45x81 mm | Beutel (5 stk) | 08711985210569 |
6210523 | 42xØ42 | 0,27 kg | 148x54x98 mm | Beutel (4 stk) | 08711985210576 |
6210534 | 54xØ54 | 0,37 kg | 176x65x120 mm | Beutel (2 stk) | 08711985210583 |
6212250 | 76,1xØ76,1 | 0,84 kg | 208x95x157 mm | Beutel (1 stk) | 08711985332728 |
6212261 | 88,9xØ88,9 | 1,12 kg | 237x110x179 mm | Beutel (1 stk) | 08711985332735 |
6212272 | 108xØ108 | 1,66 kg | 286x133x214 mm | Beutel (1 stk) | 08711985332742 |

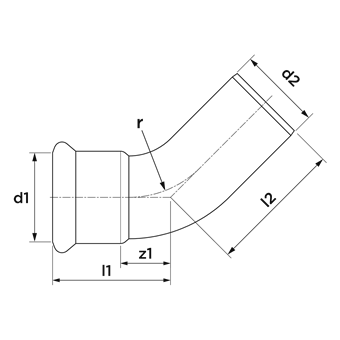

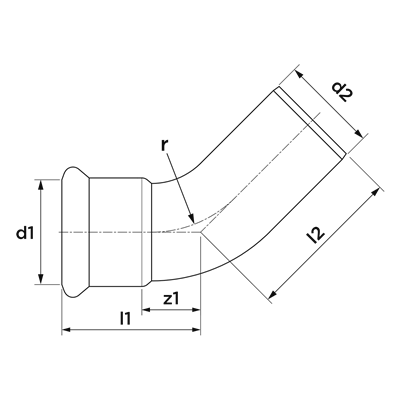

Artikelnummer | Abmessung | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | Radius | Winkel |
---|---|---|---|---|---|---|---|---|---|---|---|
6210479 | 15xØ15 | 15,0 | DN12 | 37 | 16 | 15,0 | DN12 | 48 | 28 | 23 | 45 |
6210481 | 18xØ18 | 18,0 | DN15 | 38 | 17 | 18,0 | DN15 | 45 | 25 | 27 | 45 |
6210490 | 22xØ22 | 22,0 | DN20 | 44 | 21 | 22,0 | DN20 | 53 | 32 | 33 | 45 |
6210501 | 28xØ28 | 28,0 | DN25 | 51 | 27 | 28,0 | DN25 | 60 | 37 | 42 | 45 |
6210512 | 35xØ35 | 35,0 | DN32 | 59 | 32 | 35,0 | DN32 | 66 | 40 | 53 | 45 |
6210523 | 42xØ42 | 42,0 | DN40 | 77 | 45 | 42,0 | DN40 | 80 | 50 | 63 | 45 |
6210534 | 54xØ54 | 54,0 | DN50 | 88 | 51 | 54,0 | DN50 | 97 | 62 | 81 | 45 |
6212250 | 76,1xØ76,1 | 76,1 | DN65 | 98 | 43 | 76,1 | DN65 | 117 | 62 | 91 | 45 |
6212261 | 88,9xØ88,9 | 88,9 | DN80 | 112 | 49 | 88,9 | DN80 | 131 | 68 | 107 | 45 |
6212272 | 108xØ108 | 108,0 | DN100 | 138 | 61 | 108,0 | DN100 | 154 | 77 | 130 | 45 |
Farbe | silber |
---|---|
Materialien | Edelstahl (Edelstahl 316L (1.4404)) |
Verarbeitung | Keine |
Hersteller | Aalberts integrated piping systems B.V. (VSH) |
Formen | Bogen (45º) |
Verbindung | Press (M), Rohrende |
Abdichtung | HNBR |
Produktgruppe | Fittings |
---|---|
ETIM klasse | EC003024 Fitting mit 2 Anschlüssen |
Intrastat-Nummer | 73072980 |
Marke | VSH |
Serie | XPress Edelstahl Gas |
Produkttyp | R2712G |
