R2703G
Die VSH XPress Schiebemuffe R2703G ist ein gerader Verbinder aus Edelstahl mit zwei Pressmuffen, anwendbar für Gas. Ideal für Anwendungen, bei denen hohe Schwefelwasserstoffgehalte Kupfer zu einer ungeeigneten Materialwahl machen.Der gelbe O-Ring und die gut sichtbare Markierung auf der Außenseite des Fittings gewährleisten eine eindeutige Identifizierung des Systems.
Anwendungen
Einsatzbereich
Zertifikate
Artikelnummer | Abmessung | Gewicht | L x B x H | Verpackung | GTIN |
---|---|---|---|---|---|
6210105 | 15 | 0,05 kg | 71x23x23 mm | Beutel (10 stk) | 08711985211153 |
6210116 | 18 | 0,07 kg | 77x27x27 mm | Beutel (10 stk) | 08711985211061 |
6210127 | 22 | 0,09 kg | 82x32x32 mm | Beutel (10 stk) | 08711985211078 |
6210138 | 28 | 0,11 kg | 90x38x38 mm | Beutel (10 stk) | 08711985211085 |
6210149 | 35 | 0,15 kg | 99x45x45 mm | Beutel (10 stk) | 08711985211108 |
6210151 | 42 | 0,22 kg | 115x54x54 mm | Beutel (4 stk) | 08711985211115 |
6210160 | 54 | 0,32 kg | 139x65x65 mm | Beutel (4 stk) | 08711985211122 |
Artikelnummer | Abmessung | d1 | DN1 | l1 | es1 | d2 | DN2 | l2 | es2 |
---|---|---|---|---|---|---|---|---|---|
6210105 | 15 | 15,0 | DN12 | 36 | 20 | 15,0 | DN12 | 36 | 20 |
6210116 | 18 | 18,0 | DN15 | 39 | 20 | 18,0 | DN15 | 39 | 20 |
6210127 | 22 | 22,0 | DN20 | 41 | 21 | 22,0 | DN20 | 41 | 21 |
6210138 | 28 | 28,0 | DN25 | 45 | 23 | 28,0 | DN25 | 45 | 23 |
6210149 | 35 | 35,0 | DN32 | 50 | 26 | 35,0 | DN32 | 50 | 26 |
6210151 | 42 | 42,0 | DN40 | 58 | 30 | 42,0 | DN40 | 58 | 30 |
6210160 | 54 | 54,0 | DN50 | 70 | 35 | 54,0 | DN50 | 70 | 35 |
Farbe | silber |
---|---|
Materialien | Edelstahl (Edelstahl 316L (1.4404)) |
Verarbeitung | Keine |
Hersteller | Aalberts integrated piping systems B.V. (VSH) |
Formen | Gerade |
Verbindung | Press (M) |
Abdichtung | HNBR |
Produktgruppe | Fittings |
---|---|
ETIM klasse | EC003024 Fitting mit 2 Anschlüssen |
Intrastat-Nummer | 73072980 |
Marke | VSH |
Serie | XPress Edelstahl Gas |
Produkttyp | R2703G |

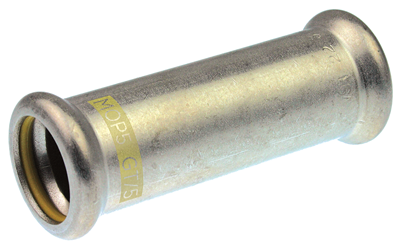

R2703G Bild |
png | Herunterladen |
VSH XPress Stainless Gas ARGB-KVBG Zertifikaten |
Herunterladen | |
VSH XPress Stainless Gas BSI Zertifikaten |
Herunterladen | |
VSH XPress stainless DVGW Gas Zertifikaten |
Herunterladen | |
VSH XPress stainless SVGW Gas Zertifikaten |
Herunterladen | |
VSH_XPress_RVS_OVGW_Gas Zertifikaten |
Herunterladen | |

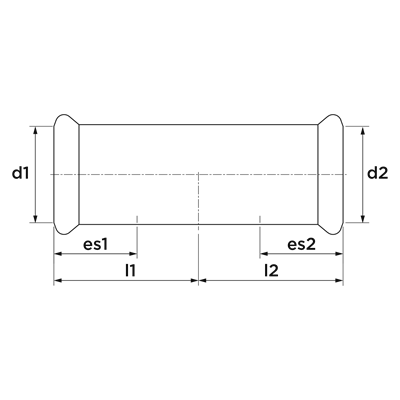

Diagram Diagramm |
png | Herunterladen |
VSH XPress installation instructions Installations- & Wartungsdokument |
Herunterladen |
Eigenschaften | Wert |
---|---|
ETIM klasse | EC003024 Fitting mit 2 Anschlüssen |
Werkstoff des Anschlusses 1 | rostfreier Stahl |
Werkstoffgüte Anschluss 1 | Edelstahl 316 L (1.4404) |
Oberflächenschutz Anschluss 1 | unbehandelt |
Oberflächenbehandlung Anschluss 1 | unbehandelt |
Werkstoff des Anschlusses 2 | rostfreier Stahl |
Werkstoffgüte Anschluss 2 | Edelstahl 316 L (1.4404) |
Oberflächenschutz Anschluss 2 | unbehandelt |
Oberflächenbehandlung Anschluss 2 | unbehandelt |
Form | gerade |
Ausführung | 1-teilig |
Reduzierend | Nein |
Exzentrisch | Nein |
Systemgebunden | Ja |
Wanddicke Anschluss 1 | 1,5mm |
Anschluss 1 | Pressmuffe |
Konturcode Verbindung 1 | M |
Wanddicke Anschluss 2 | 1,5mm |
Anschluss 2 | Pressmuffe |
Konturcode Verbindung 2 | M |
Hauptfarbe Fitting | grau |
Material Dichtung | Hydrierter Acrylnitrilbutadien-Kautschuk (HNBR) |
Mit Stoßnocken | Nein |
Mediumtemperatur (Dauerbetrieb) | -20°C - 70°C |
Mediumtemperatur (Dauerbetrieb) (imperial) | -4°F - 158°F |
Mit thermischer Isolierung | Nein |
Mit Dichtungsmaterial | Nein |
Verschlossen | Nein |
Mit Verbindungsanzeige | Nein |
Mit Entleerungsventil | Nein |
Mit Entlüfter | Nein |
FM-Prüfung | Nein |
LPCB-Prüfung | Nein |
ULC-Qualitätskennzeichen | Nein |
UL-Prüfung | Nein |
DIN-CERTCO-Zertifikat | Nein |
VdS-geprüft | Nein |
Mit TÜV-Zulassung | Nein |
DVGW-Siegel für Gas | Ja |
DVGW-Siegel für Wasser | Nein |
Zertifiziert nach NF 545 | Nein |
KIWA-Prüfsiegel | Nein |
Gastec QA Prüfung | Nein |
KOMO-Prüfsiegel | Nein |
Typenzulassung nach BBR/EKS | Nein |
