4969
Anwendungen
Einsatzbereich
Artikelnummer | Abmessung | Gewicht | L x B x H | Verpackung | GTIN |
---|---|---|---|---|---|
0026067 | G3/4" (DN20) | 0,2 kg | 129x38x38 mm | Beutel (1 stk) | 04018422183078 |
0026068 | G1" (DN25) | 0,3 kg | 152x46x46 mm | Beutel (1 stk) | 04018422183085 |
0026069 | G1 1/4" (DN32) | 0,55 kg | 191x52x52 mm | Beutel (1 stk) | 04018422183092 |
0026070 | G1 1/2" (DN40) | 0,57 kg | 199x56x56 mm | Beutel (1 stk) | 04018422183108 |
0026071 | G2" (DN50) | 1,29 kg | 261x68x68 mm | Beutel (1 stk) | 04018422183115 |

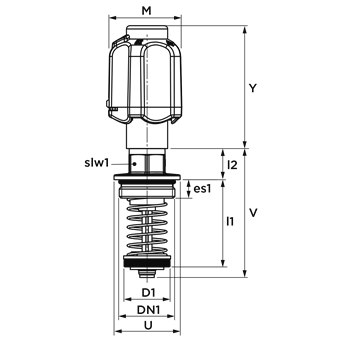

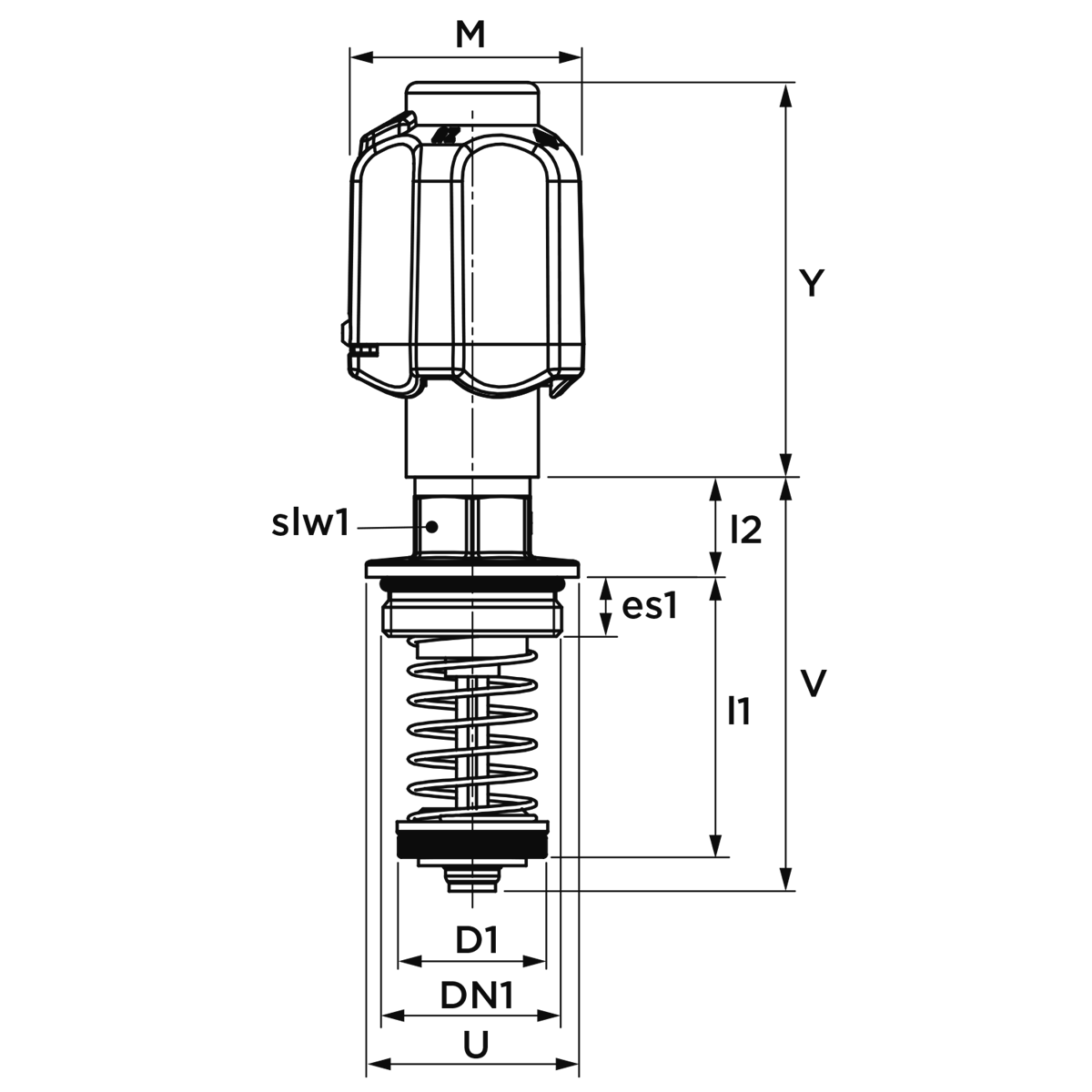

Artikelnummer | Abmessung | DN1 | l1 | slw1 | M | Y | V | U | D1 |
---|---|---|---|---|---|---|---|---|---|
0026067 | G3/4" (DN20) | 3/4" (DN20) | 43 | 17 | 36 | 62 | 62 | 38 | 22 |
0026068 | G1" (DN25) | 1" (DN25) | 52 | 22 | 46 | 73 | 71 | 46 | 28 |
0026069 | G1 1/4" (DN32) | 1 1/4" (DN32) | 63 | 27 | 52 | 94 | 109 | 52 | 35 |
0026070 | G1 1/2" (DN40) | 1 1/2" (DN40) | 72 | 27 | 52 | 94 | 96 | 56 | 41 |
0026071 | G2" (DN50) | 2" (DN50) | 92 | 32 | 58 | 125 | 124 | 68 | 53 |
Farbe | messing, rot |
---|---|
Materialien | Messing (CW617N) |
Verarbeitung | Keine |
Hersteller | Seppelfricke |
Formen | Gerade |
Verbindung | G - Zylindrisches Aussengewinde (BSPP) |
Druckstufe product | PN 16 |
Abdichtung | EPDM |
Produktgruppe | Ventile (Zubehör (Ventile), Absperrventile, Rückschlagventil) |
---|---|
ETIM klasse | EC011657 Zubehör/Ersatzteile für Absperrventil |
Intrastat-Nummer | 84819000 |
Marke | Seppelfricke |
Serie | SEPP Servo |
Produkttyp | 4969 |
SCIP | 595b237a-cb3d-4f91-8731-a4c832a4905b |
4969 Bild |
jpg | Herunterladen |
Diagram Diagramm |
png | Herunterladen |
Eigenschaften | Wert |
---|---|
ETIM klasse | EC011657 Zubehör/Ersatzteile für Absperrventil |
Werkstoff | Messing |
